Plastic tube decoration
Offset Printing and Varnishing incl. Capping

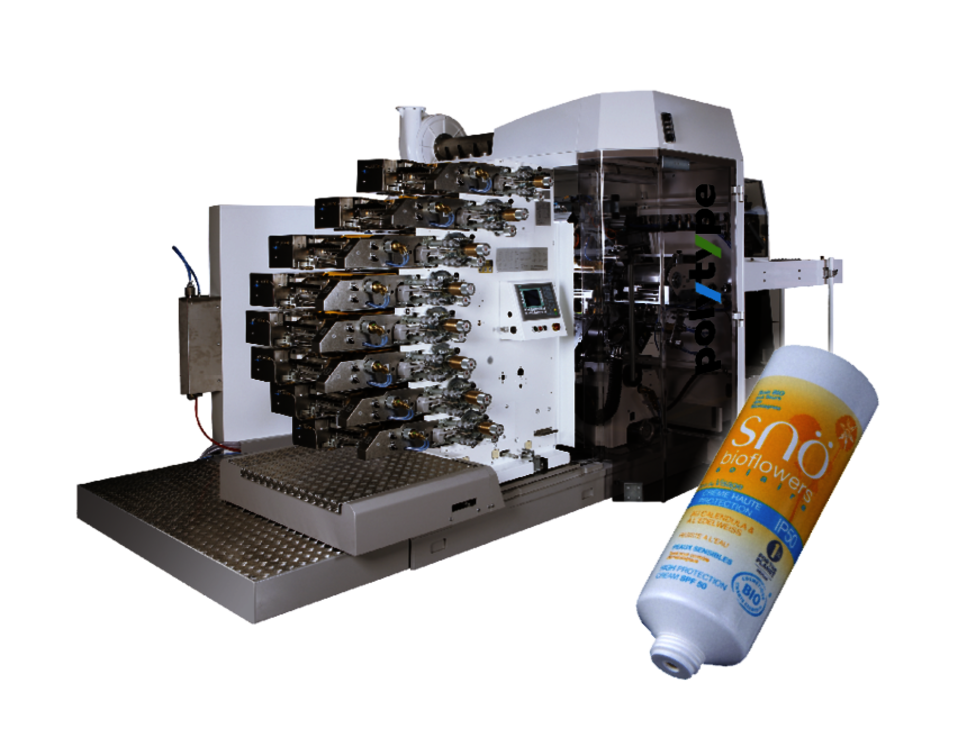

RDA-X
The compact and flexible dry offset printing and varnishing machine for plastic tubes incl, capping operations or dry offset printing and varnishing machine for sleeve.
The compact and flexible dry offset printing and varnishing machine for plastic tubes incl, capping operations or dry offset printing and varnishing machine for sleeve.

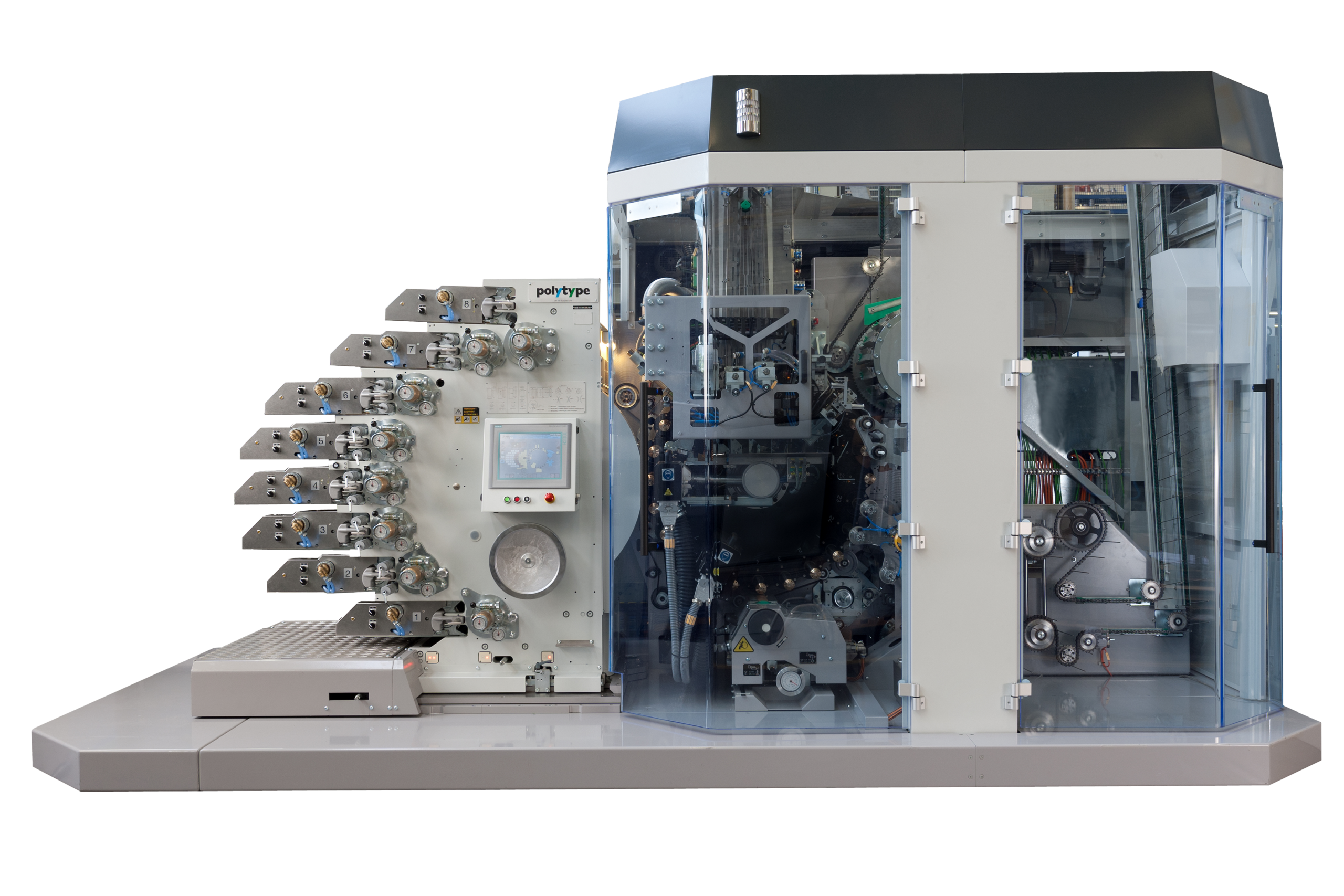

RDA-24-165
The high-performance dry offset printing and varnishing machine for plastic tubes incl, capping operations or dry offset printing and varnishing machine for sleeve.
The high-performance dry offset printing and varnishing machine for plastic tubes incl, capping operations or dry offset printing and varnishing machine for sleeve.
The compact and flexible dry offset printing and varnishing machine for plastic tubes incl, capping operations or dry offset printing and varnishing machine for sleeve.
Operations:
- Membrane punching and sealing
- Cap screwing and tightening or Cap snap on
- Print orientation to flip top cap
- Dry Offset Printing and Varnishing
Highlights:
- Quick change option for a fast design change
- Surface pre-treatment by gas or by corona
- Printing units with up to 8 colors
- Hybrid printing unit for Prime offset with 4 colors for CMYK and 4 colors for separate Pantone
- Pre-Print option for strong colours with transparent tubes
- TS grip system, which holds the tubes or sleeves firmly on the mandrel. Less set-up time, better print quality
- UV ink curing with progressive power regulation
- Squeezing roller or anilox varnishing unit
Technical Data
RDA-X | RDA 24-165 | |
|---|---|---|
Min./max. diameter
| (16) 19-50 (60) mm
| (16) 19-50 (60) mm
|
Skirt length
| 60-215 mm
| 50-215 mm
|
Max. printing width
| 205 mm
| 205 mm
|
Cap diameter
| (16) 19-50 mm
| (16) 19-50 mm |
Max. printing speed
| 130/min.*
| 165/min.*
|
Weight of main machine
| ~10,000 kg
| ~12,000 kg |
*(depending on configuration)
