Plastic tube decoration
Dry Offset and/or Prime Offset Printing & Varnishing
RDA-130
The standard dry offset printing and lacquering machine for plastic tubes and sleeves.
The standard dry offset printing and lacquering machine for plastic tubes and sleeves.
The standard dry offset printing and lacquering machine for plastic tubes and sleeves.
Operations:
- Tube and sleeve printing and lacquering
Highlights:
- Excellent-value dry offset printing machine, supports up to
8 colors - Complete decoration in one machine: dry offset printing and
lacquering - High printing precision, reliability and productivity
- Fast changeover of printing design and size parts
- Polytype Swiss quality ensures high-end printing quality
RDA-X
The compact dry offset printing and lacquering machine for plastic tubes and sleeves.
The compact dry offset printing and lacquering machine for plastic tubes and sleeves.
The compact and flexible dry offset printing and varnishing machine for plastic tubes and sleeves.
Highlights:
- Quick change option for a fast design change
- Surface pre-treatment by gas or by corona
- Printing units with up to 8 (9) colors
- Pre-Print option for strong colours with transparent tubes
- TS grip system, which holds the tubes or sleeves firmly on the mandrel. Less set-up time, better print quality
- UV ink curing with progressive power regulation
- Squeezing roller or anilox varnishing unit
RDA-24-165
The high-performance dry offset printing and lacquering machine for plastic tubes and sleeves.
The high-performance dry offset printing and lacquering machine for plastic tubes and sleeves.
The high-performance dry offset printing and varnishing machine for plastic tubes or dry offset printing and varnishing machine for sleeve.
Highlights:
- Sleeve or tube printing
- Membrane punching and sealing
- Cap screwing and tightening
- Cap screwing and tightening incl. print orientation
- Snap-on incl. print orientation

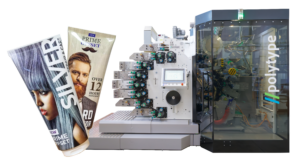

RDA-16-200/240
The high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The compact and flexible dry offset printing and varnishing machine for plastic tubes and sleeve.
Highlights:
- Compact machine design for dry offset printing, UV ink curing and over varnishing in one machine
- Quick change option for a fast design chang
- Modern control panel interface, easy to use with large data memory for repeated jobs
- TS grip system, which holds the tubes or sleeves firmly on the mandrel. Less set-up time, better print quality
- Pre-Print option for strong colours with transparent tubes/sleeves
- Optional equipment for tube positioning prior to printing and vision control system can be installed
RDA-24-300
The ultra-high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The ultra-high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The ultra-high-speed dry offset printing and lacquering machine for plastic tubes.
Highlights:
- Compact machine design for dry offset printing, UV ink curing and over varnishing in one machine with a speed up to 300/min
- Safe tube transfer on the pin change
- Adjusted operation for mini-tubes with a tube diameter of 10 mm
RDA-130
The standard dry offset printing and lacquering machine for plastic tubes and sleeves.
The standard dry offset printing and lacquering machine for plastic tubes and sleeves.
RDA-X
The compact dry offset printing and lacquering machine for plastic tubes and sleeves.
The compact dry offset printing and lacquering machine for plastic tubes and sleeves.
RDA-24-165
The high-performance dry offset printing and lacquering machine for plastic tubes and sleeves.
The high-performance dry offset printing and lacquering machine for plastic tubes and sleeves.
RDA-16-200/240
The high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
RDA-24-300
The ultra-high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The ultra-high-speed dry offset printing and lacquering machine for plastic tubes and sleeves.
The standard dry offset printing and lacquering machine for plastic tubes and sleeves.
Operations:
- Tube and sleeve printing and lacquering
Highlights:
- Excellent-value dry offset printing machine, supports up to
8 colors - Complete decoration in one machine: dry offset printing and
lacquering - High printing precision, reliability and productivity
- Fast changeover of printing design and size parts
- Polytype Swiss quality ensures high-end printing quality
Technical Data
RDA-130 | RDA-X | RDA 24-165 | RDA 16-200/240 | RDA 24-300 | |
|---|---|---|---|---|---|
Min./max. diameter
| 19 – 50 mm
| (16) 19-50 (60) mm
| (16) 19-50 (60) mm
| (16) 19-50 (60) mm
| 10.0 – 19.0 mm
|
Skirt length
| 60-210 mm
| 60-215 mm
| 50-215 mm
|
60-205 mm
| 25 – 110 mm
|
Max. printing width
| 205 mm
| 205 mm
| 205 mm
| 205 mm
| 160 mm
|
Cap diameter
| (16) 19-50 mm
| (16) 19-50 mm | |||
Max. printing speed
| 120/min.
| 130/min.*
| 165/min.*
| 200/min or 240/min | 300/min.
|
Weight of main machine
| ~10,000 kg
| ~10,000 kg
| ~12,000 kg | ~11,000 kg | |
Up to 8 (9) colours |
*(depending on configuration)
