Plastic container decoration
Dry Offset Round
high-performance cup printing systems
High-performance dry offset printing machine for round bucket.
High-performance dry offset printing machine for round bucket.
The high performance 6-8 cup printing system, type BDM 930 for round bucket. The basic printing unit and transfer section are made of a robust steel construction. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The flexible feeding system open the possibility to print on different products.
The standard cup dry offset printing machine with high reliability.
The standard cup dry offset printing machine with high reliability.

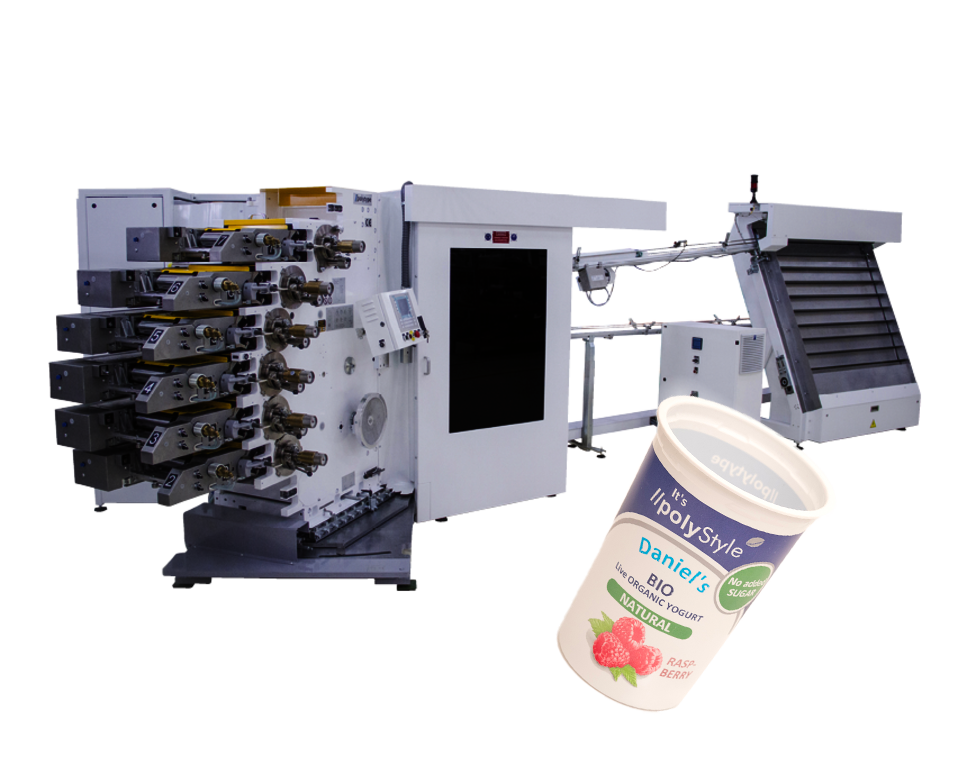

The 6-8 color cup printing system, type BDM 482, is a proven concept. The basic printing unit and transfer section are made of a robust steel construction. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The standard cup infeed and discharge automation round off the system.
Good to know
- High user-friendliness: printing unit and transfer accessible from one side
- Layout with in-feed elevator
- Semi-Automatic inking unit washing
- Analog display of the printing unit angle position
- Pre-print system for transparent cups
The standard cup dry offset printing machine with high reliability.

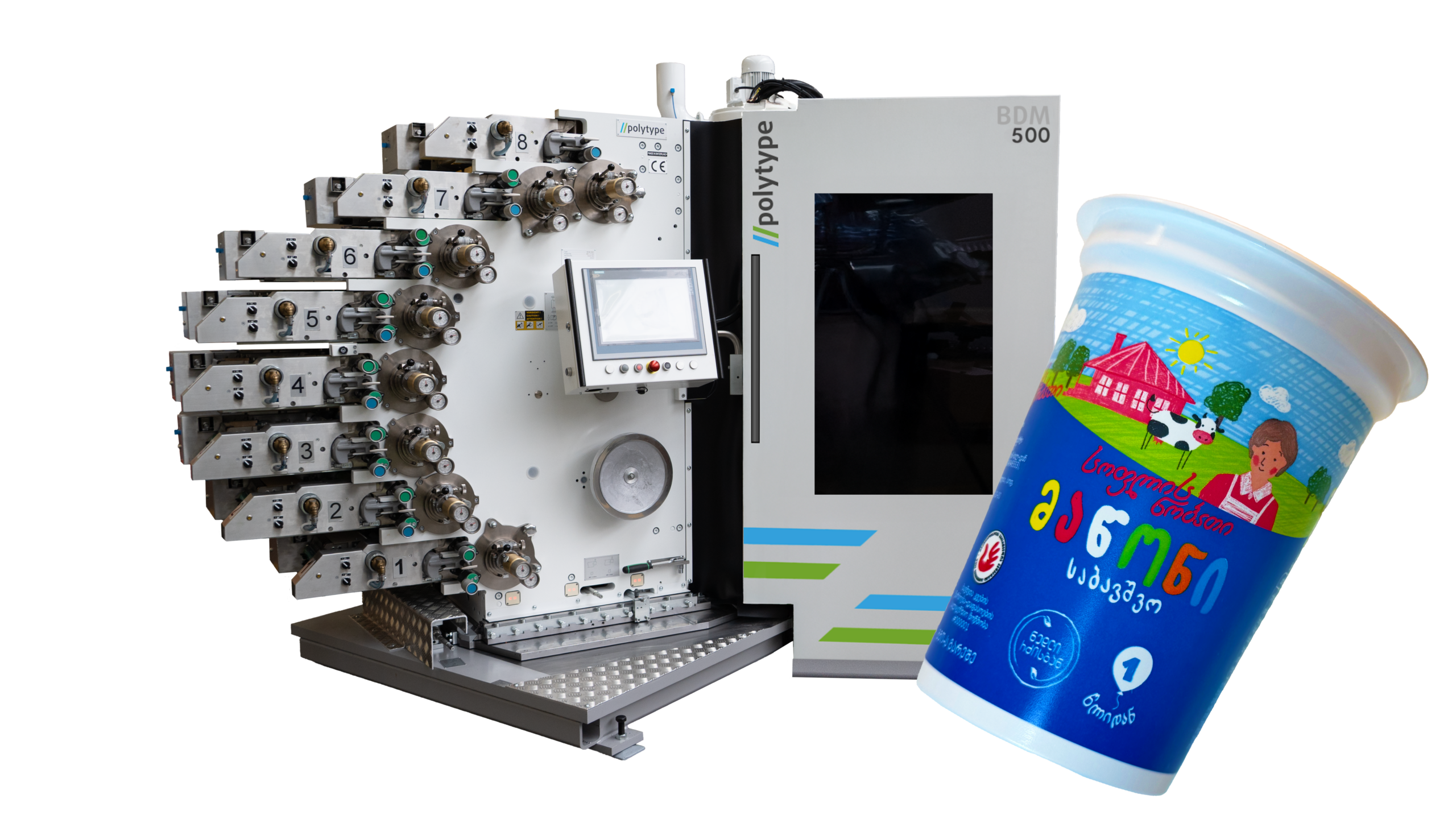

The 6-8 color cup printing system, type BDM 500, is a proven concept.
The basic printing unit and transfer section are made of a robust steel construction. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The standard cup infeed and discharge automation round off the system.
Good to know
- Long live torque motor, reduce service and energy costs
- High user-friendliness: printing unit and transfer accessible from one side
- Layout with in-feed elevator
- Semi-Automatic inking unit washing
- Analog display of the printing unit angle position
The standard cup dry offset printing machine with high reliability.
The high performance cup dry offset printing machine, which is highly reliable, includes the latest torque motor technology.
The 6-8 color cup printing system, type BDM 600, is a proven concept. The basic printing unit and transfer section are made of a robust steel construction. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The standard cup infeed and discharge automation round off the system. Selected options enhance the machine’s performance.
Good to know
- Long live torque motor, reduce service and energy costs
- High user-friendliness: printing unit and transfer accessible from one side
- Layout with in-feed elevator
- Semi-automatic inking unit washing as standard
- Automatic inking unit washing for fast change over
- Pre-Print option makes a big benefit for transparent cups
- The optional Vision Control System provides production security
High-performance dry offset printing machine for round cups.
High-performance dry offset printing machine for round cups.

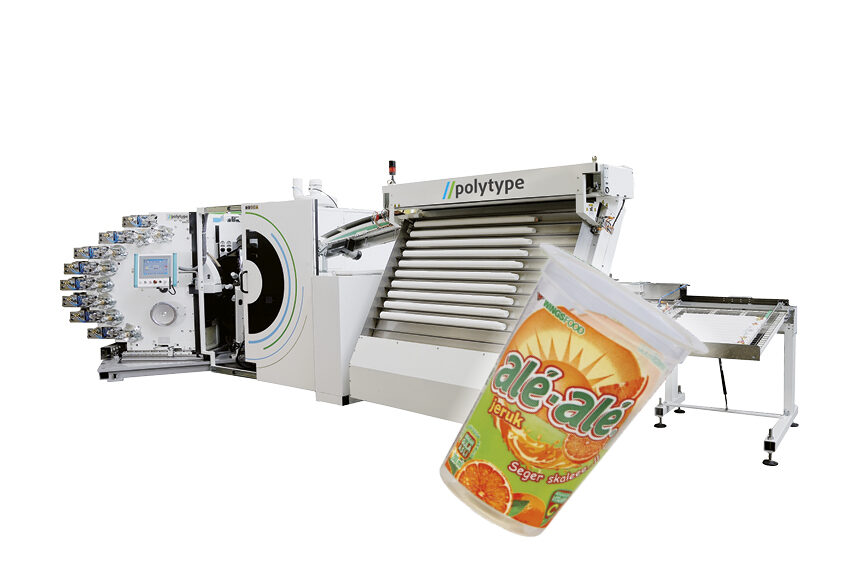

The high performance 6-8 cup printing system, type BDM 681/682 for round cups. The basic printing unit and transfer section are made of a robust steel construction. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The newly designed cup in-feed and discharge automation round off the system.
The main characteristics of BDM 681/682 printing technology are the very high efficiency, the outstanding print quality, the short change-over time as well as the excellent accessibility and ergonomics (one operator layout).
High-speed dry offset printing machine for round cups, includes the latest torque motor technology.
Fastest dry offset printing machine for round cups on the market.

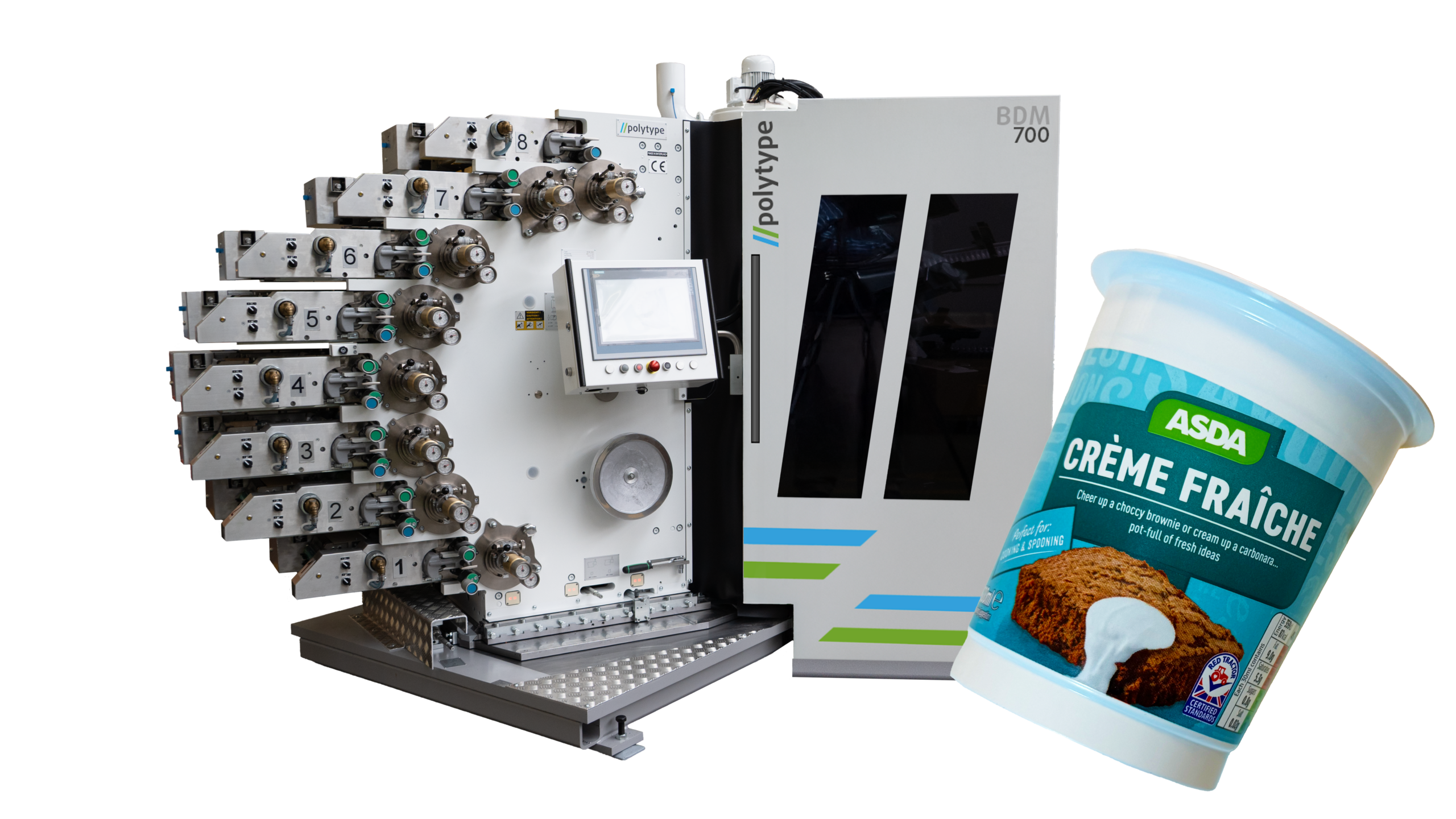

The high speed 6-8 cup printing system, type BDM 700 for round cups. The basic printing unit and transfer section are made of a robust steel construction. The latest torque motor technology enables speeds of up to 700 cups per minute, while reducing energy and service costs. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The newly designed cup in-feed and discharge automation round off the system.
The main characteristics of BDM 700 printing technology are the very high efficiency, the outstanding print quality, the short change-over time as well as the excellent accessibility and ergonomics (one operator layout).
Good to know
- Long live torque motor, reduce service and energy costs
- High user-friendliness: printing unit and transfer accessible from one side
- Layout with in-feed elevator
- Fast change over options: Automatic inking unit washing, level ink fountains and pre-inking program as well quick setting option for format change
- Pre-Print option makes a big benefit for transparent cups
- The optional Vision Control System provides production security
High-performance dry offset printing machine for round bucket.
The standard cup dry offset printing machine with high reliability.
The standard cup dry offset printing machine with high reliability.
The standard cup dry offset printing machine with high reliability.
High-performance dry offset printing machine for round cups.
High-speed dry offset printing machine for round cups, includes the latest torque motor technology.
The standard cup dry offset printing machine with high reliability.
The 6-8 color cup printing system, type BDM 482, is a proven concept. The basic printing unit and transfer section are made of a robust steel construction. The pre-treatment and the UV-Mandrel curing are integrated in the basic machine concept. The standard cup infeed and discharge automation round off the system.
Good to know
- High user-friendliness: printing unit and transfer accessible from one side
- Layout with in-feed elevator
- Semi-Automatic inking unit washing
- Analog display of the printing unit angle position
- Pre-print system for transparent cups
Technical Data
BDM 930 | BDM 482 | BDM 500 | BDM 600 | BDM 682 | BDM 700 | |
|---|---|---|---|---|---|---|
Number of colours | 6-8 colours | 6-8 colours | 6-8 colours | 6-8 colours | 6-8 colours | 6-8 colours |
Min./max. cup height | 75 – 300 mm | 35 – 200 mm | 35 – 200 mm | 35 – 200 mm | 35 – 200 mm | 35 – 200 mm |
Min./max. rim diameter | 50 – 300 mm | 60 – 185 mm | 60 – 185 mm | 60 – 185 mm | 60 – 185 mm | 60 – 185 mm |
Max. printing height | 200 (260) mm | 145 mm | 145 mm | 145 mm | 145 mm | 145 mm |
Max. printing length | 800 mm | 345/502 mm (6/3 sections) | 502 mm | 502 mm | 418/502 mm | 502 mm |
Min. / max. taper | 2-10° | 2-15° | 2-15° | 2-15° | 2-15° | 2-15° |
Max. printing speed | 300 cups/min | 450 cups/min | 500 cups/min | 600 cups/min | 650 cups/min | 700 cups/min |
Weight of main machine | – | ~6,500 kg | ~6,400 kg | ~6,500 kg | ~6,500 kg | ~6,500 kg |
