Metal container decoration
Dry / Prime Offset Printing or Varnishing

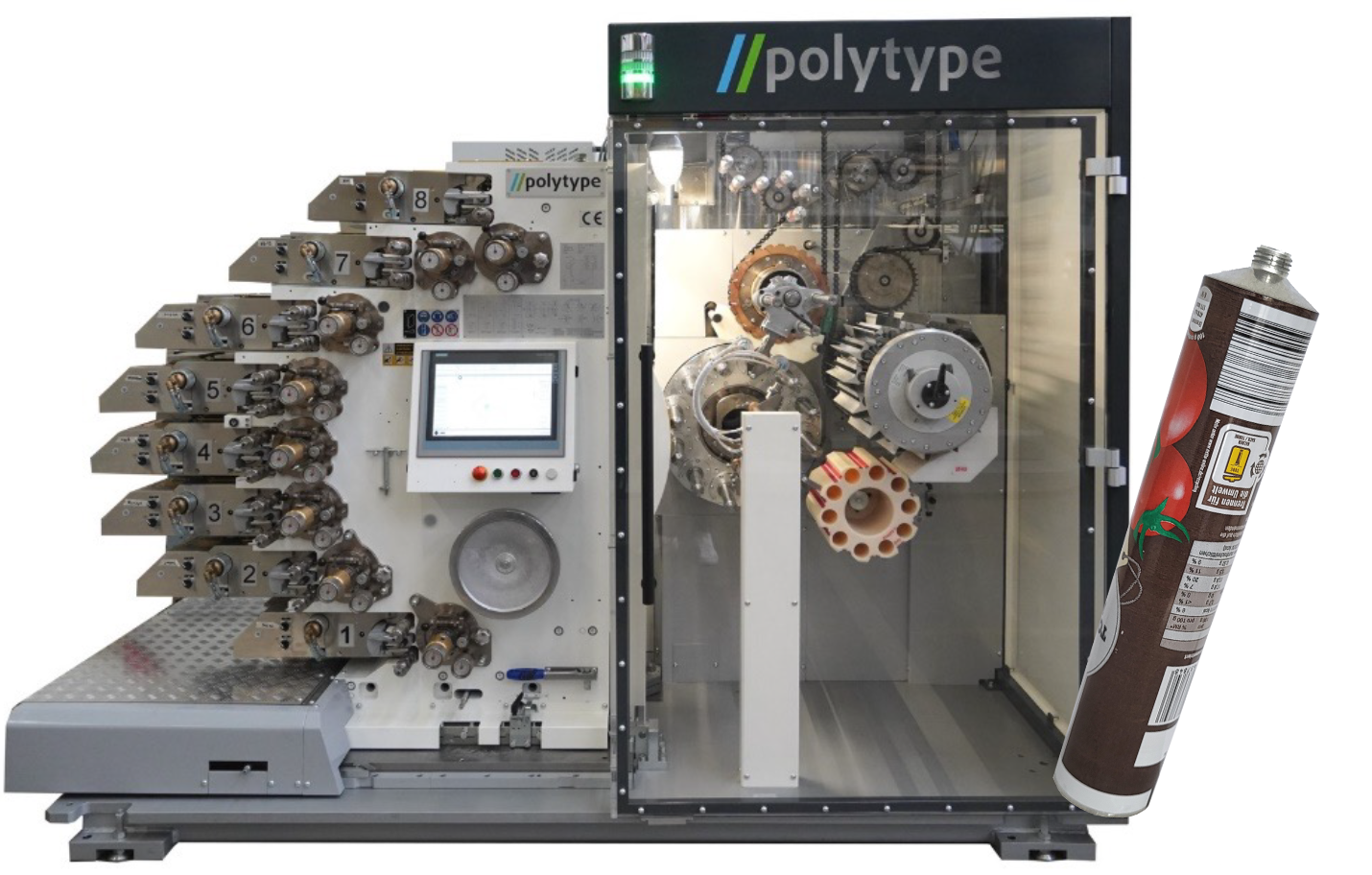

AP 170
The state of the art offset printing machine for aluminium tubes or cans
The state of the art offset printing machine for aluminium tubes or cans

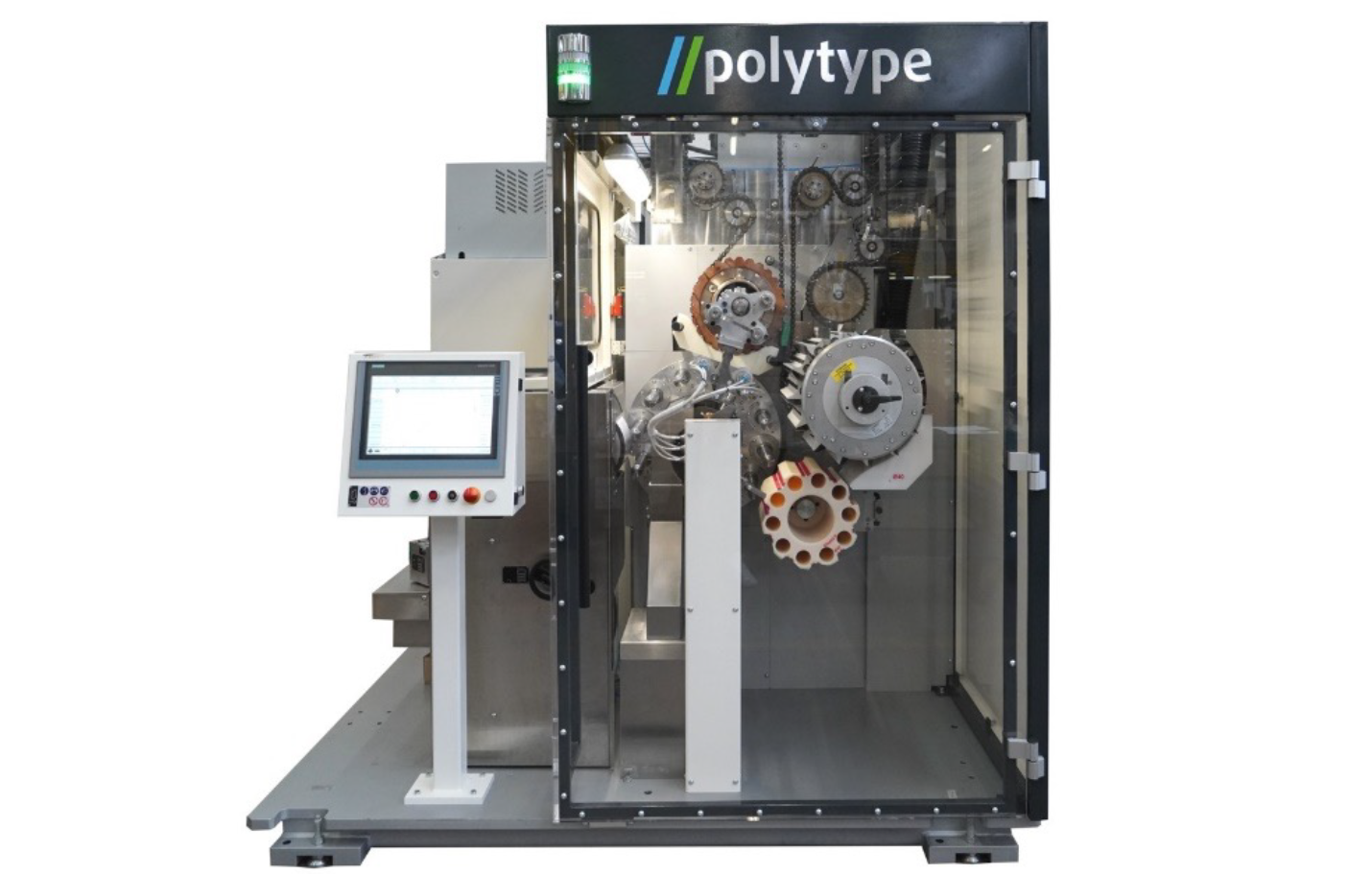

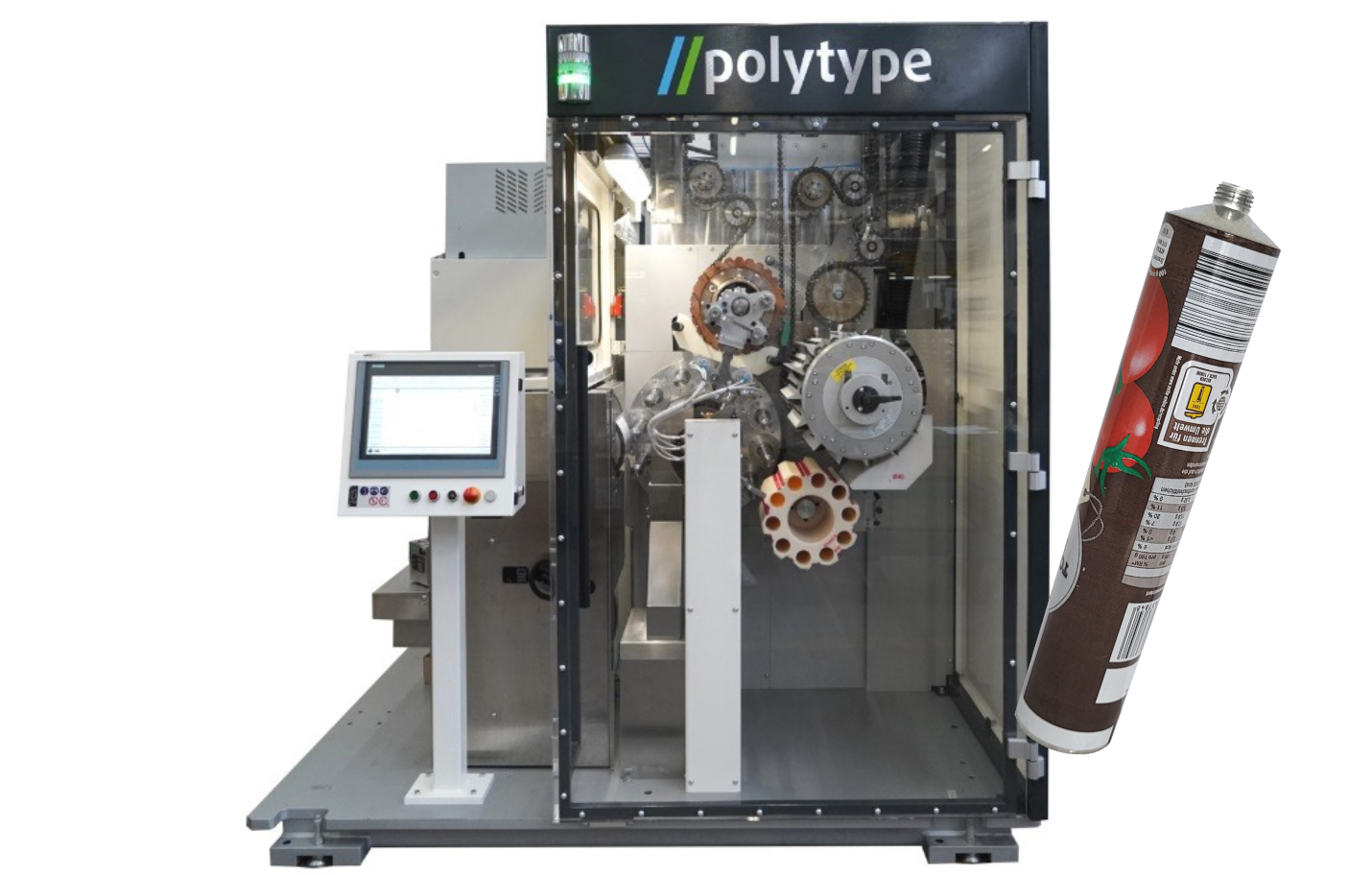

AC 170
The state of the art varnishing machine for aluminium tubes or cans
The state of the art varnishing machine for aluminium tubes or cans
AP 170: The compact dry offset printing machine for aluminum tubes and cans.
Highlights:
- Quick change option for a fast design change
- Modern printing unit with up to 8 colors
- Robust and durable construction for high-quality printing
- Compact machine design
- Reliable transfer at up to 170/min</
Technical Data
AP 170 for Cans | AP 170 for Tubes | AC 170 | |
|---|---|---|---|
Ø Small-/Large range | 35-53 mm / 40 – 66 mm | 11-25 mm / 19 – 45 mm | Adapted to AP 170 |
Skirt height Small-/Large range | 110-235 / 110-260 mm | 50-160 / 50-210 mm | Adapted to AP 170 |
Max. printing /coat hight | 260 mm | 205 mm | 210 mm |
Colors | Up to 8 | Up to 8 | – |
Max. speed | 170/min. | 170/min. | 170/min. |
*(depending on configuration)
